Overhead Line

]
RECLOSER

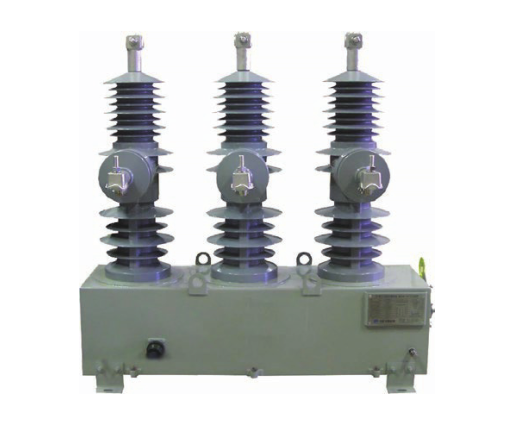

Epoxy Insulated Recloser

Epoxy Recloser is installed on poles of overhead distribution lines and is designed to quickly interrupt temporary faults(overloads, short circuits or open circuit) protecting key distribution line equipment and minimizing outage areas (Environment friend

[
Description
]
  • With epoxy insulation, the equipment offers excellent durability and reliable insulation, enabling it to automatically restore temporary faults in the power system with high reliability
  • Primarily used to enhance the stability of distribution networks and the reliability of power supply
[
Features
]
  • 01 Maintenance-free concept
  • 02 Solid dielectric insulation
  • 03 Climate-independent
  • 04 Simple operating PMA mechanism
  • 05 Up to 3000m altitude, it ensure the rated insulation and interrupting capabilities
[
Advantages
]
  1. 01

    PMA(Permanent Magnetic Actuator)

  2. 02

    ON/OFF indicator

  3. 03

    Universal clamp

  4. 04

    Manual tripping/locking and optional manual closing device

  5. 05

    Easy installation and operation

[
Specification
]
Item PS1R PS2R PS3R
JK-MREC
Rated maximum voltage 17.5 24 36
Rated continuous current 630/800
Rated frequency 50/60
Rated lightning impulse withstand voltage 95/110 125/145* 170/195*
Rated power frequency withstand voltage 38/45 50/60 70/80
Rated short-time withstand current 12.5/16
Rated duration of short circuit 1/3*
Rated short-circuit breaking current 12.5/16
Operating time Close/Open 0.05 / 0.025
Mechanical endurance 5,000 C-O
Rated continuous current 630 / 800
Applied standard IEC62271-111, IEEE/ANSI C37.60
